Micro Powder Grinding Mill

Product Introduction of micro powder grinding mill:

Hongrun micro powder grinding mill is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Mohs hardness under six, such as calcite, chalk, limestone, dolomite, kaolin bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorate, diatomite, barite, gypsum, alunite, graphite, fluorite, rock phosphate, Kalum ore, pumice, fly ash etc., totally more than 100 kinds of materials.

Micro Powder Grinding Mill

Features of micro powder grinding mill:

Micro powder grinding mill is designed by our R&D department on the basis of multiple innovation and testing. It has been proved by thousands of customers that our machine has outstanding features, stable quality, easy operation and maintenance. It is the ideal equipment for fine powder milling.

Micro Powder Grinding Mill

Flow diagram of micro powder mill processing:

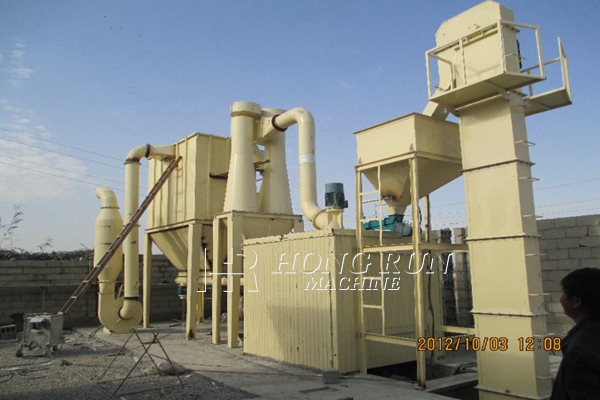

Work site of micro powder grinding mill:

Micro Powder Grinding Mill

Micro Powder Grinding Mill

Working principles of micro powder grinding mill:

LXM series micro powder grinding mill mainly consist of main unit classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.

After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turn plate by vibrating feeder and sloping feeding pipe.

When the grinding mill is at work, the main bearing and each dial are driven by electromotor of main equipment through reducer, and all the grinding rollers are rolling in the ring channels driving by dial through plunger, The materials are driven to the edge of the turn plate by the centrifugal force and fall down into the grinding chambers where the materials are repeated pressed, crushed and grinded by the rollers, Then the materials fall into multiple layers and to be crushed and ground continuously to micro powder.

The high-pressure air blower constantly inhales air within the grinding mill and, in turn, the airflow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector, Most of the qualified powders will fall and exit from the discharging valve at the bottom a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.
